Steel fence

Steel fence

Steel fenceย refers to balcony guardrail made of zinc alloy material. Due to its advantages of high strength, high hardness, beautiful appearance, and bright color, it has become the mainstream product used in residential communities. Traditional balcony guardrails use iron bars and aluminum alloy materials.

It requires the use of welding and other process technologies, and the texture is relatively soft, prone to rust, and has a single color. Zinc steel balcony guardrails perfectly solve the shortcomings of traditional guardrails, and are affordable, becoming a substitute product for traditional balcony guardrail materials.

share to

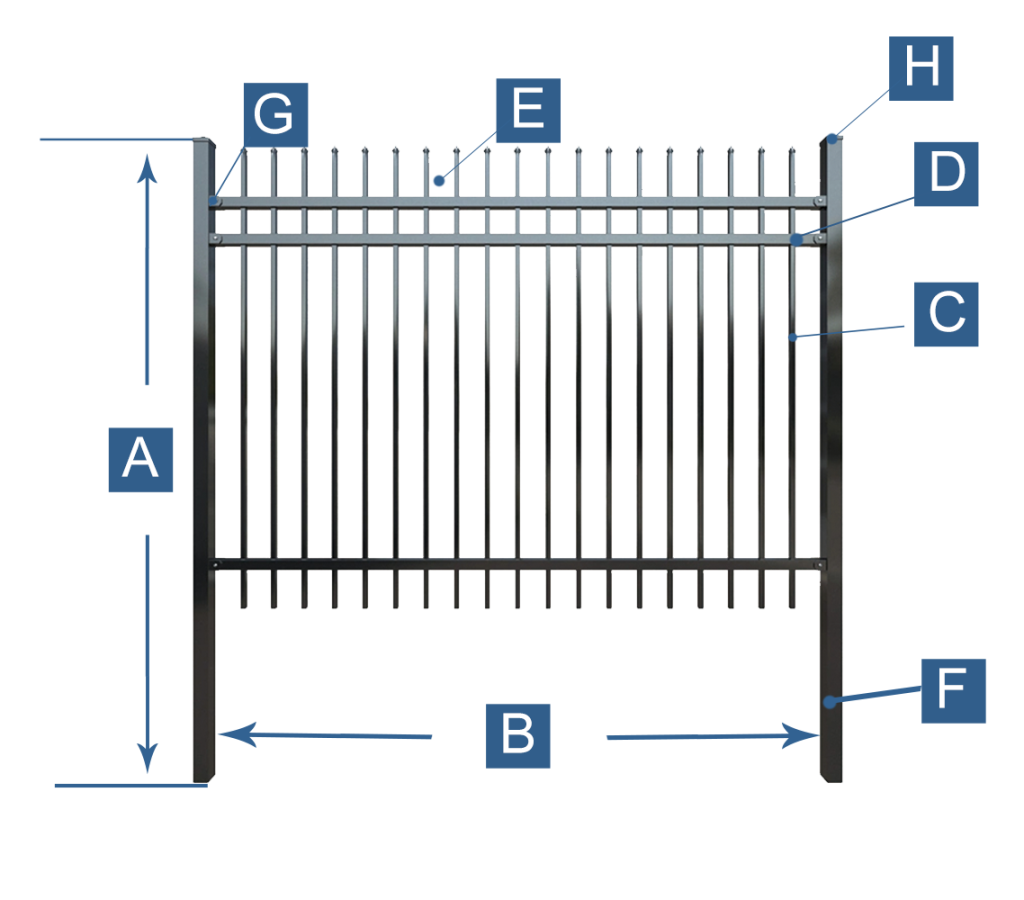

Features

A: Height: 1200 mm, 1500 mm, 1800 mm, 2100 mm, etc

B: Width: 1800 mm, 2000 mm, 2400 mm

C: Vertical picket: 15 mm ร— 15 mm, 19 mm ร— 19 mm, 25 mm ร— 25 mm; thickness: 0.8โ€“2.0 mm

D: Horizontal rail: 30 mm ร— 30 mm, 40 mm ร— 40 mm, 45 mm ร— 45 mm, 2 rails, 3 rails or 4 rails

E: Vertical pipe spacing: 100 mm, 110 mm, 120 mm

F: Post: 50 mm ร— 50 mm, 60 mm ร— 60 mm, 80 mm ร— 80 mm, 100 mm ร— 100 mm; thickness: 1.2โ€“3.0 mm

G: Fixing: Steel brackets or aluminum brackets

H: Post Cap: metal cap / anti-UV plastic cap



Specification
table
Material Galvanized steel Q195 or Q235
Panel size 1.5*1.8m(5*6ft),1.8×2.4m (6x8ft), 2.1×2.4m (7x8ft), 2.4×2.4m (8x8ft), etc.
Rail size 40x40mm, 30x30mm, 50x50mm, etc.
Picket size 19x19mm, 20x20mm, 25x25mm, etc.
Post size 60x60mm, 50x50mm, 70x70mm, 75x75mm,
80*80mm etc.
Top point Press Top or Spear Top or custom
Surface treatment Hot Dipped Galvanized + Powder Coated

Our products

Steel Fence is also known as picket welded fence, ornamental fence, steel security fence.It is one of the most popular types of security fencing very sturdy and designed for fencing commercial properties, schools and house etc.The panels are manufactured using the highest-strength steel pickets and rails, and are available in a wide range of sizes and styles while being fixed to galvanized and powdered square steel columns with high-strength steel brackets.It is popular for its aesthetics and high security.

The following is our detail display
